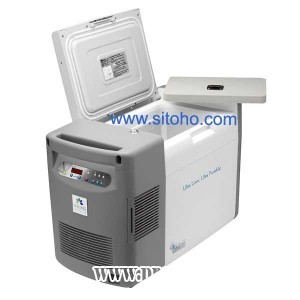

PORTABLE ULTRA LOW TEMPERATURE FREEZER SHUTTLE TM ULT-25N, JUAL PORTABLE FREEZER DI INDONESIA

  • Minimal Pembelian : 1 Unit
  • Maksimal Pembelian : 100 Unit
  • Pengiriman : 45 Hari Setelah Pembayaran
  • Lokasi : Jawa Barat - Depok
  • Harga : Rp. 0 / Unit
  • Dilihat : 847 Kali
  • Pembaruan : 20-02-2025 15:39
Dapatkan Spesifikasi Harga PORTABLE ULTRA LOW TEMPERATURE FREEZER SHUTTLE TM ULT-25N, JUAL PORTABLE FREEZER DI INDONESIA Produk Terbaik dari CV. ALAT KESLING INDONESIA Distributor Alat Kesehatan Lingkungan (alat kesling) dan Alat Laboratorium

Produk Detail

JUAL PORTABLE ULTRA LOW TEMPERATURE FREEZER SHUTTLE TM MODEL ULT-25N DI INDONESIA, informasi harga hubungi kami di email : alatkesling123@hotmail.com

Spesifikasi :
1. Application, Rating and Electric Data
▪ Application  : Storage of general (non-flammable)
      laboratory materials
▪ Storage Volume  : 25 liters (0.9 cu.ft.)
▪ Storage Capacity : 18 standard 2" boxes
▪ Temp. Range  : -86°C to -20°C @ 32°C (90°F) ambient,
      uniformity ± 0.75°C top to bottom, adjustable in 1°C
      increments Presets for -86°C, -40°C and -20°C
▪ Electric Power  : 120V or 240V, AC; 60Hz or 50Hz;
      or 12V DC from mobile source
▪ Max. Power  : 280 watts (3.6 amps @120V, 1.8 amps @240V )
▪ Auto-Voltage C  : 88V to 264V, 50 or 60 Hz
▪ Electric Rating  : 15 amp or greater grounded circuit
▪ Certification  : CE
▪ Noise  : Typical of laboratory equipment
2. Controller :
▪ Controller Type : Microprocessor controls
▪ Security  : Lockable lid
▪ Alarms  : Setpoint ± 10°C Warm and Cold
▪ Control Sensor  : One RTD (PT100 Class B)
3. Refrigeration System
▪ Cooling Engine  : Humm™ helium charged free-piston Stirling engine
      with continuous modulation
▪ Heat Transport   : Gravity driven thermosiphon operates on a cooling
      medium of 0.4 oz to 0.9 oz (10 to 25 grams)
      depending on medium used
▪ Refrigerant  : R-508B nonflammable CFC/HCFC-Free
▪ Evaporator  : Cold wall (inner liner)
▪ Defrost Method  : Manual
4. Performance Data, Empty Cabinet
▪ Steady Energy  : < 2.8 kWh/day at -80°C Setpoint
▪ Heat Dissipation  : 403 BTU/h (load to HVAC) at -80°C Setpoint
▪ Pull-Down : from 25° C Ambient : 2,2 hours
▪ Warm-Up -80°C  : 30 minutes to -60°C
    : 70 minutes to -40°C
    : 130 minutes to -20°C
5. Dimensions and Construction
▪ Interior  : (L x W x D) 332 x 221 x 340 mm
▪ Exterior  : (L x W x D) 692.5 x 350 x 460 mm
▪ Net Weight, : Empty 21 kg (46 lbs.), nominal
▪ Shipping Weight  : 26.3 kg (58 lbs.), nominal
