Sauermann SICA 230 KIT 6NDSC Gas Analyzer for Emissions Monitoring of Boiler, Engine, & Other Combustion Applications

  • Merk : Sauermann
  • Minimal Pembelian : 1 unit
  • Maksimal Pembelian : 100 unit
  • Pengiriman : 45 Hari Setelah Pembayaran
  • Lokasi : Jawa Barat - Depok
  • Harga : Rp. 123 / unit
  • Dilihat : 478 Kali
  • Pembaruan : 24-09-2026 16:44
Dapatkan Spesifikasi Harga Sauermann SICA 230 KIT 6NDSC Gas Analyzer for Emissions Monitoring of Boiler, Engine, & Other Combustion Applications Produk Terbaik dari CV. ALAT KESLING INDONESIA Distributor Alat Kesehatan Lingkungan (alat kesling) dan Alat Laboratorium

Produk Detail

Sauermann SICA 230 KIT 6NDSC Gas Analyzer / Combustion Gas Analyzer untuk Emissions Monitoring pada Cerobong Asap, Boiler, Mesin & Uji Emisi pada mesin Industri. Gas Analyzer alat uji Emisi Sumber Tidak bergerak untuk pengukuran pada cerobong asap industri dengan parameter gas : O2, CO, NO, NO2, SO2, CxHy secara bersamaan, hasil pengujian dapat di printer sebagai laporan

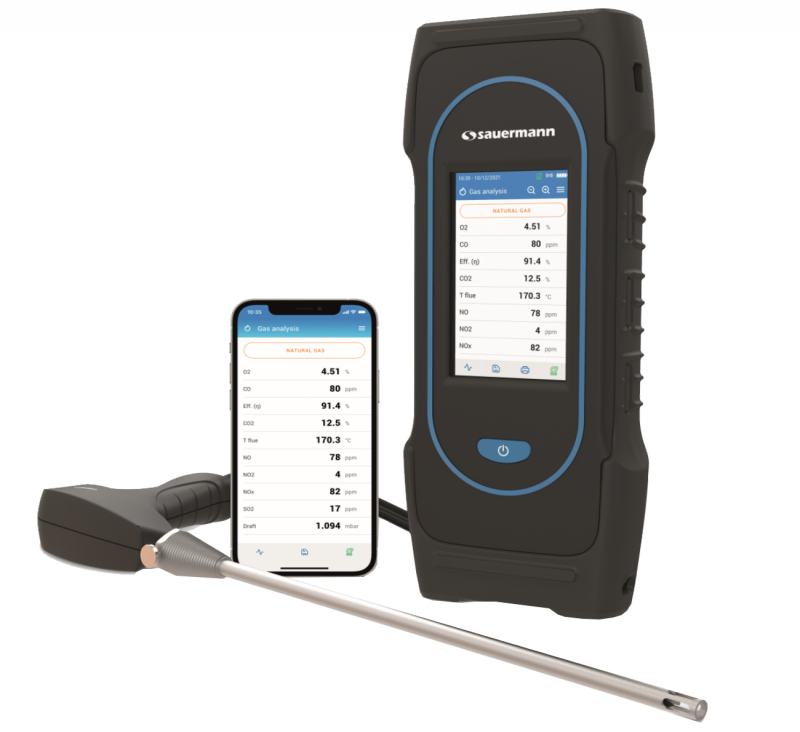

Sauermann / Kimo Instrument SICA 230 alat uji emisi di lengkapi dengan Sampling Probe 750mm dan Printer Wireless

Combustion Gas Analyzer
Model : SICA 230 KIT 6NDSC
Product : Sauermann (Francis)
Specification :
  GAS     Range Resolution
▪ O2  : 0-25% 0.01%
▪ CO  : 0-10.000 ppm 1 ppm
    :
    :
▪ CO2 : 0 to 99.9% 0.1%
▪ NO : 0-5.000 ppm  1 ppm

▪ NO2   0-1.000 ppm 1 ppm
    :
▪ SO2 : 0-5.000 ppm  1 ppm
    :
▪ CxHy (HC) : 0 to 5% 0.01%
▪ Flue Temperature   -20 to +1250 °C 0.1 °C
▪ Air Temperature : -20 to +120 °C 0.1 °C
▪ Differential Temp.   0 to 1250 °C 0.1 °C
▪ Pressure/Draff : -200 to +200 mba 0.01 mbar
    : -80 to +80 inH2
O		 0.001 inH2 O
▪ Excess air : 0 to 999% 1%
▪ Efficiency : 0 to 100%  0.1%
▪ Efficiency (condensation) : 0 to 125% 0.1%
▪ Stack Gas Velocity : 0 to 99 m/s 0.1 m/s
    : 0 to 19,500 fpm 1 fpm
▪ Probe : 750mm probe length, 3m dual hose, rated to 1200°C
▪ Dimensions/ weight : 28 x 11.2 x 5.5 cm / 825 g
▪ Display : Color Touch Screen; 480 x 272 pixels
▪ Keypad : 1 On-Off key
▪ Material : ABS-PC
▪ Protection : IP42
▪ Connection : Wireless: class 2 range, range frequency from 2402 MHz to 2480 MHz
      with a transmit power of 1 dBm. Range up to 15 m (50 ft),
      depending on smartphone radio strength.
      Minimum required versions: Android 8.0, iOS 12.4, BLE 4.0 Low Energy
    : USB
▪ Power supply : Rechargeable battery, USB power supply
      Li-Ion 5100 mA/h 3.6 V battery / Power supply voltage of the
      mains unit: 100-240 Vac, 50-60 Hz Mains unit: 5 Vdc/2A
▪ Battery : Battery life > 8 h; Charging time: Fully charge: < 6.5 h; 50%: < 2.5 h
▪ Memory : Internal memory up to 2000 tests
▪ Environmental : Temperature: from -5 to 45 °C (23 to 113 °F),
  conditions of use   Hygrometry: in non-condensing conditions (< 85% RH)
      Maximum altitude: 2000 m (6561’)
▪ Languages : English, French, German, Spanish, Italian, Portuguese, Chinese
▪ European Union Directives : 2014/53/EU (RED); 2015/863 EU (RoHS 3)
▪ Regulations : EN 50379-1 and EN 50379-2; UNI 7129; UNI 11137; UNI 10389; UNI 10845;
      UL & cUL Certification; BS 7967:2015; BS EN 50543:2011; UNE 60670-10; ES.02173.ES;
      TÜV SÜD Certification
▪ Complete Unit : Main unit included with 6 sensor gas O2, CO, NO, NO2, SO2, CxHy
    : 750 mm Sampling Probe with 3 m house
    : Protective rubber hoister
    : ABS plastic carrying case
    : Power Charge, USB cable
    : Quick guide and Calibration certificate

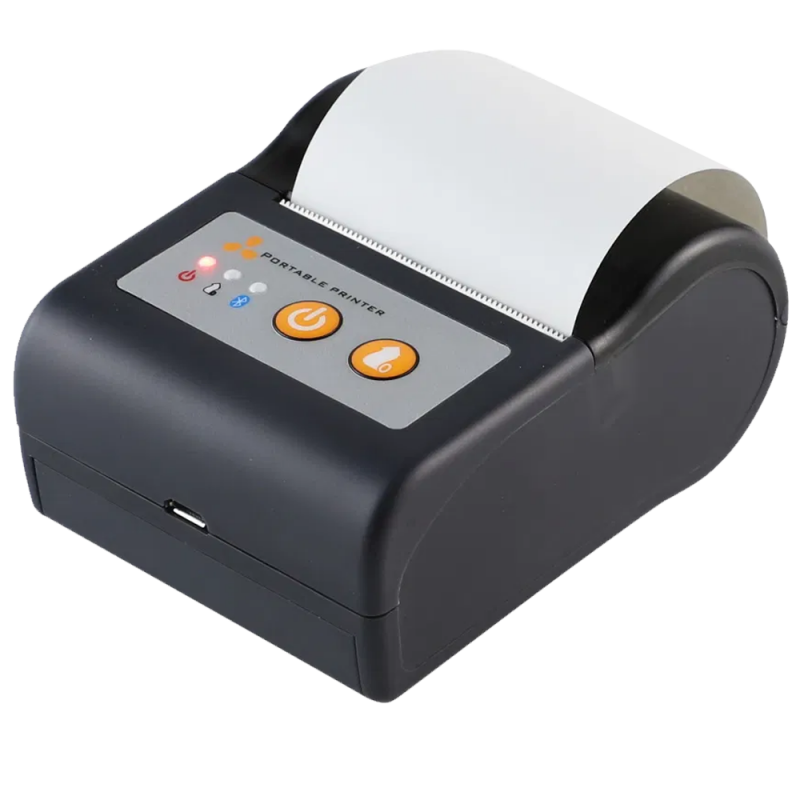

    : Remote wireless printer
