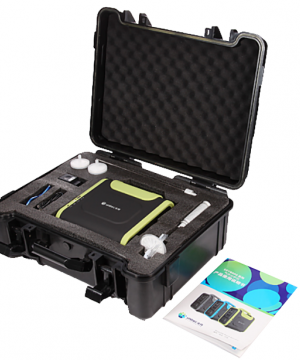

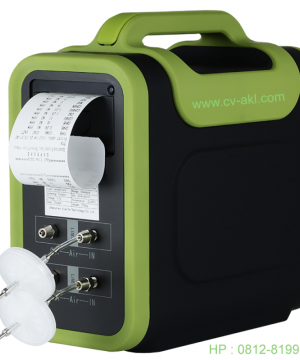

Perbesar GambarPortable Air Quality Analyzer
Type : Aqms-8000
Spesifikasi :
| 1 | Parameters | Range | |
| ▪ | PM110 | : | 0-1000µg/m3 |
| ▪ | PM2,5 | : | 0-1000µg/m3 |
| ▪ | SO2 | : | 0-100ppb |
| ▪ | NO2 | : | 0-100ppb |
| ▪ | NH3 | : | 0-100ppb |
| ▪ | H2S | : | 0-50ppm |
| ▪ | O3 | : | 0-10ppb |
| ▪ | HC | : | 0-50 ppm |
| ▪ | Temperature | : | -40 to 120 °C |
| ▪ | Humidity | : | 0-100 %RH |
| 2 | Technical Data | ||
| ▪ | Detection Principle | : | Electrochemical, PID, Laser, Thermosensitive, |
| Humidity Sensitivity | |||
| ▪ | Display | : | Formula, gas concentration data, measurement trend |
| curve gas curve, battery, time, t emperature,humidity, | |||
| pressure (optional), pump condition, wireless status, | |||
| printer status, screen shot status | |||
| ▪ | Alarm | : | Buzzer, red LED and alarm status on the display, fault alarm, |
| pump abnormal alarm, low battery alarm | |||
| ▪ | Data storage | : | Independent SD memory card, Max.32G, measurement data |
| can be record automatically, customizable record time interval | |||
| ▪ | Data transmission | : | Download the data by U-disk with one key |
| ▪ | Print function | : | internal bluetooth printer |
| ▪ | Print content | : | Text, graphics, one-dimensional code, |
| two-dimensional code, curves, characters, etc. | |||
| ▪ | Pump flow rate | : | 10 grades adjustable, flow range: 0-500 cc/Min |
| ▪ | Humidity | : | 0～95%RH（no condensation） |
| ▪ | Temperature | : | -40℃~+70℃ ，Optional gas sampling gun, can detect |
| up to 1200 degrees gas concentration | |||
| ▪ | Screen | : | 3.5-inch hd LCD screen with resolution 320* 480 |
| ▪ | Size/weight | : | 260 x 230 z 120mm / 3700g |
| ▪ | Battery | : | Large capacity rechargeable lithium battery,5400mAh/11.1V |
| (internal printer type）or 10000mAh/3.7V （external printer type） | |||
| working hours are more than 32h with single gas and | |||
| 24h with six gases togethe |
